Strange warping when drawing lines on certain parts of cintiq 16 screen

Caden Roylance

• 7 octobre 2023 05:34
• Modifié

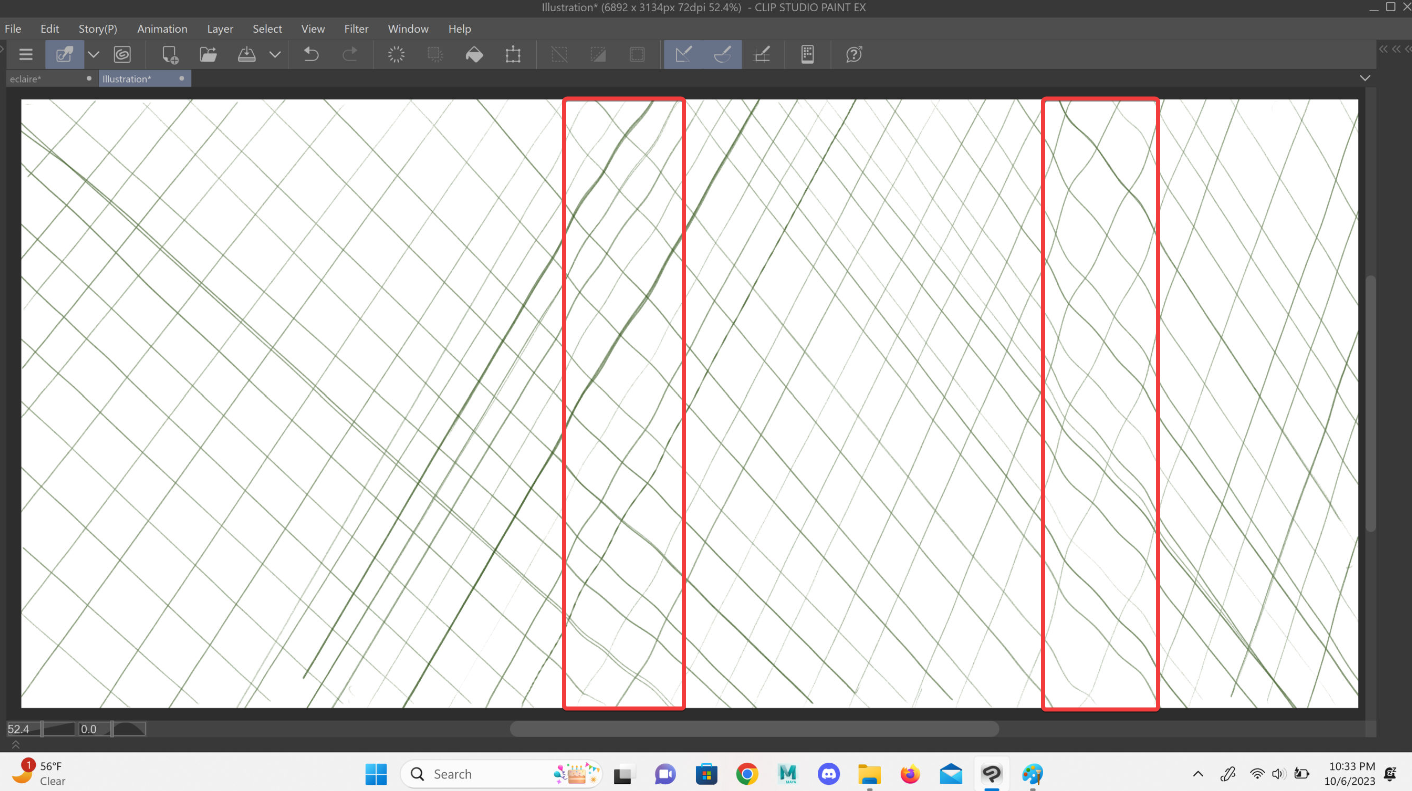

For a few weeks now I've noticed that when I draw on certain parts of the screen my cursor will veer off course. I'm using mostly clip studio paint on a computer running windows 11. I've tried calibrating the pen in tablet properties, updating to the latest drivers, restoring default settings through the Wacom Center, and replacing my old cables.I took this screenshot to show the warping. It's always in those specific areas of the screen in this specific pattern. I drew those lines with a physical straight edge so I know the lines are wobbling because of how the display is reading the pen's  input and not how the pen is actually moving. I also tried drawing in mspaint to make sure it wasn't just clip studio acting up, and I saw the same pattern of line wobbles there.

0

•

  João

  • 9 octobre 2023 07:12

  Hi Caden Roylance,

  Unfortunately, this means that the sensor on your tablet is defective on those 2 sections:


  The sensor will need to be repaired. I have created a support ticket for you. Someone will reach out as soon as possible.

  0
