Wacom has recently added battery management control that allows you to make the most of your MobileStudio Pro’s battery health. If you’re a Mobile user, the default setting is already in place and will give you maximum battery capacity. For those of you that are mainly working at a desk and have the device attached to the power outlet, we recommend you switch to the desktop mode and maximize the life of your battery. Please see the requirements and follow the directions to find the battery mode control.
This updated is available for the following models: DTHW1621H, DTHW1321H, DTH1321L
If you are sure this applies to your device, follow the steps below:
- Make sure driver 6.3.38 or later is installed - https://www.wacom.com/support/product-support/drivers
- Make sure Windows is fully up to date.
- Make sure BIOS version MC18 or above is installed

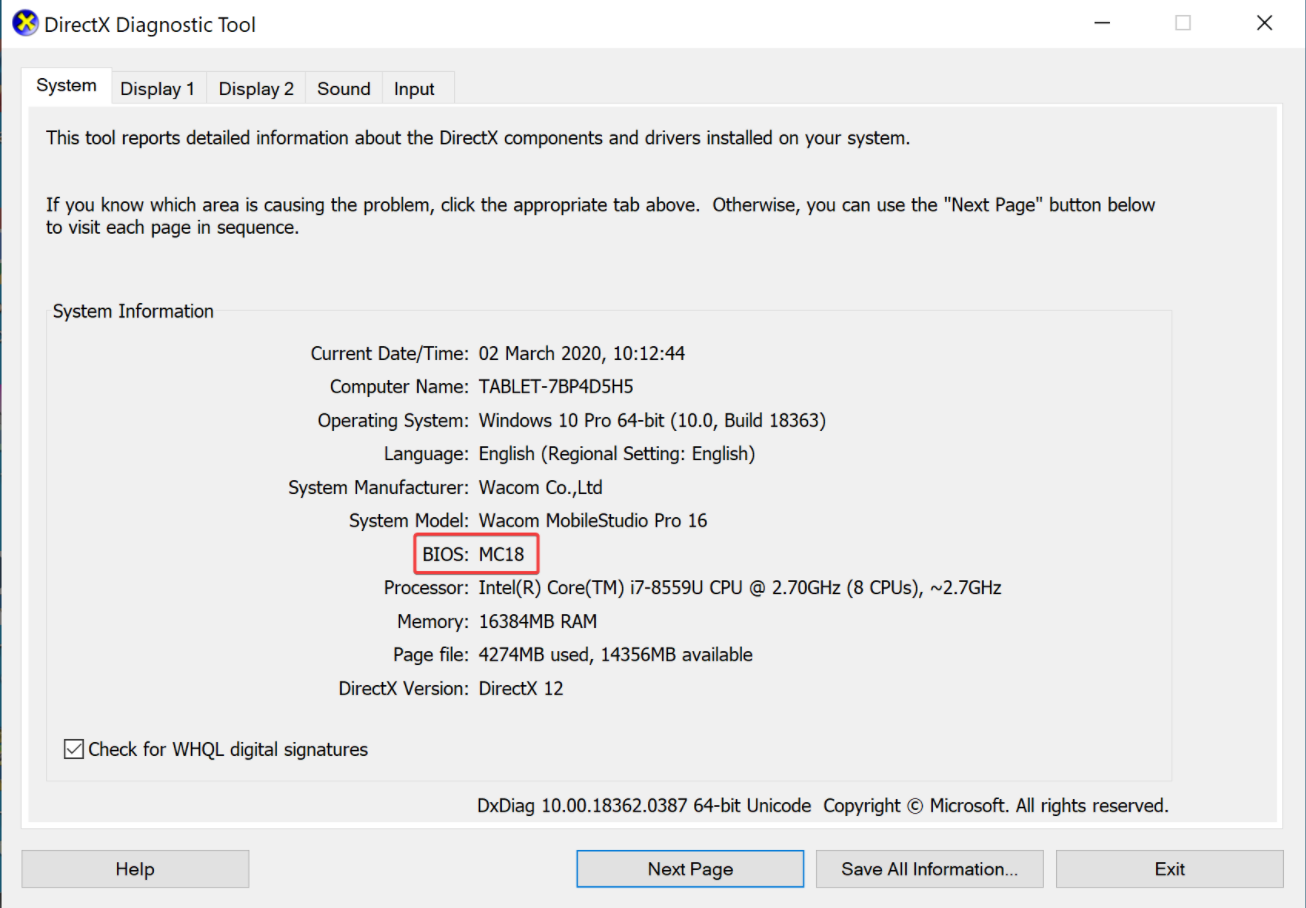

- To do this, click the Windows search bar and type “DXDiag”. Run the application and find the BIOS version
- If the latest firmware is not installed, reboot your MobileStudio Pro and check for additional updates.

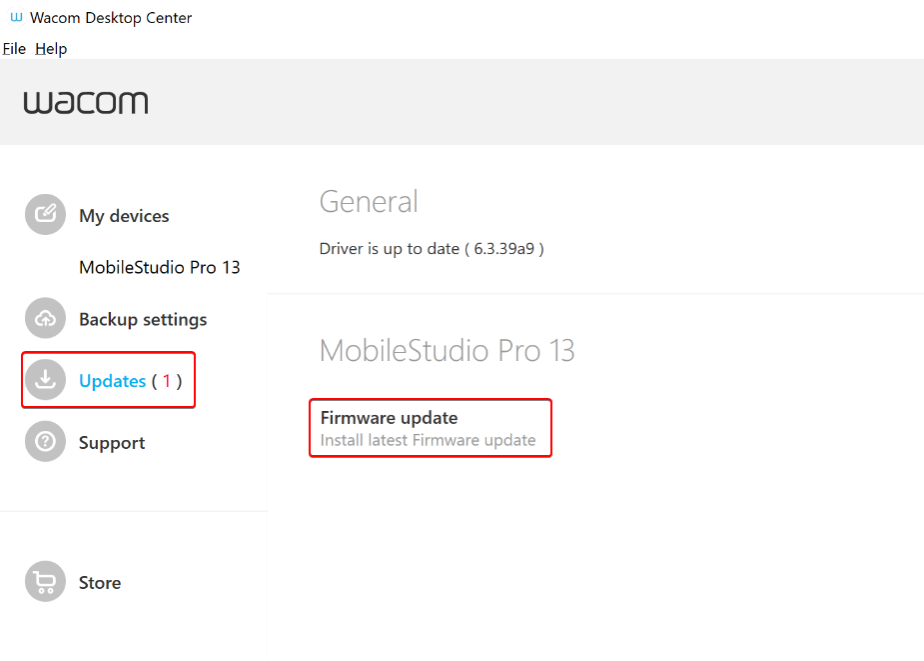

- Open the Wacom Desktop Center and look for the firmware update in the Update section
- Follow the firmware installation instructions carefully. Make sure you read the instructions carefully.

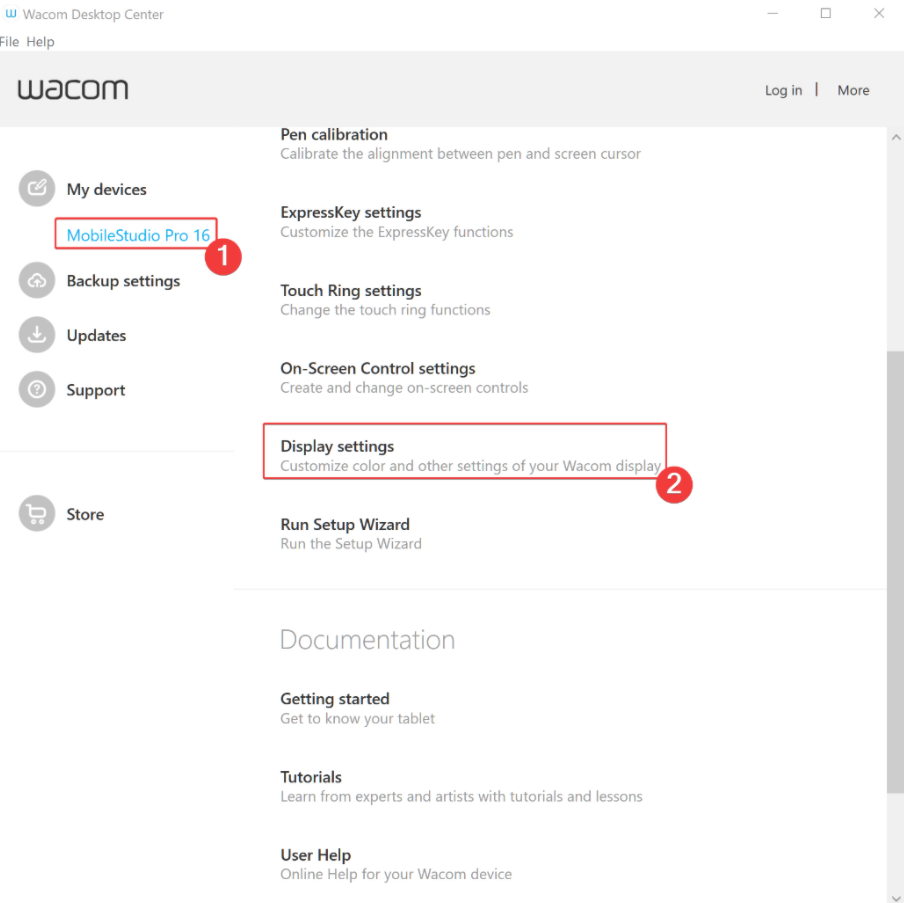

- Once the BIOS and the firmware updates are installed – Select your device in the Wacom Desktop Center and open the Wacom Display Settings

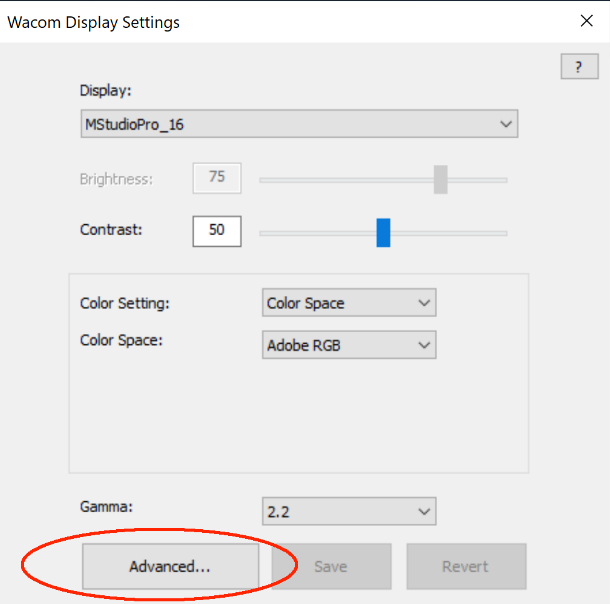

- Once the Wacom Display Settings is open, click on Advanced

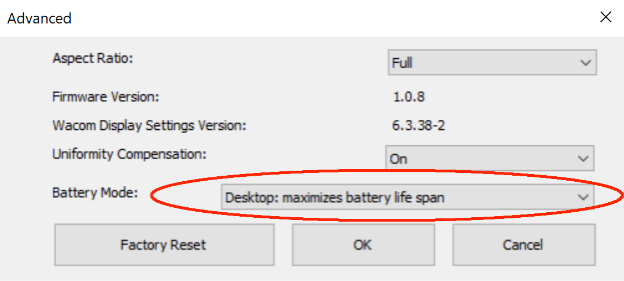

- In the Advanced Window, select your preferred battery mode
