or computers with USB-C port:
- Place your Wacom Cintiq Pro in the position in which you intend to use it
- Connect the Power Adapter to a wall socket, then plug the USB-C connector on the AC Adapter to the Wacom Cintiq Pro's power port.
- Connect the supplied USB-C cable to the USB-C port on the Wacom Cintiq Pro.
- Connect the other end of the USB-C cable to the USB-C port on your computer.
- Power on the Wacom Cintiq Pro by pressing the power button for 2 seconds.
For computers with DisplayPort™/HDMI™ and standard USB-A ports:
- Place your Wacom Cintiq Pro in the position in which you intend to use it
- Connect the Power Adapter to a wall socket, then plug the USB-C connector on the AC Adapter to the Wacom Cintiq Pro's power port.
- Connect the supplied HDMI™ or Mini DisplayPort™ cable to the corresponding port on the Wacom Cintiq Pro.
- Connect the supplied USB-C cable to the Wacom Cintiq Pro 27 and connect the supplied USB-C to USB-A adapter to the other end of the cable.
- Connect the other ends of the two cables to your computer's corresponding ports.
- Power on the Wacom Cintiq Pro by pressing the power button for 2 seconds.

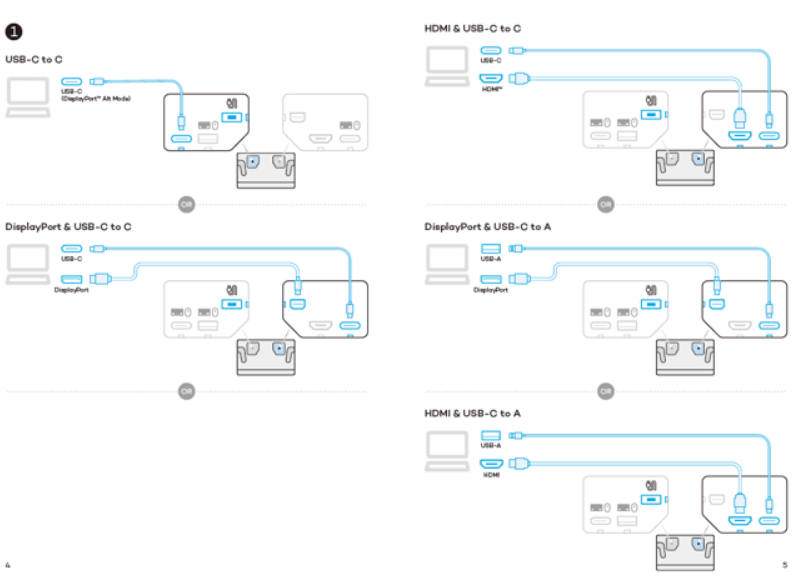

Wacom Cintiq Pro 22 & 27

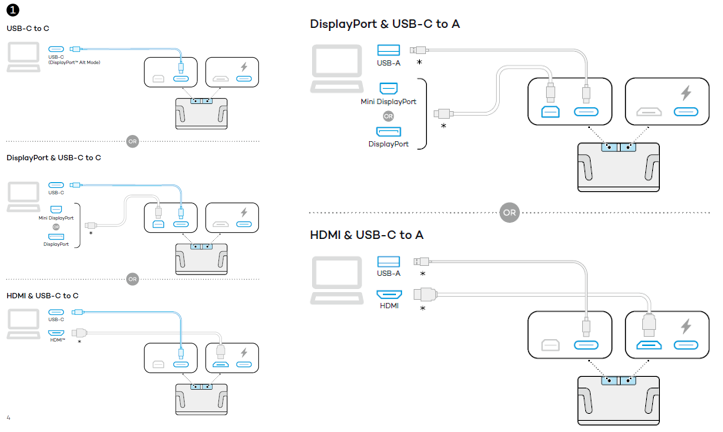

Wacom Cintiq Pro 17
